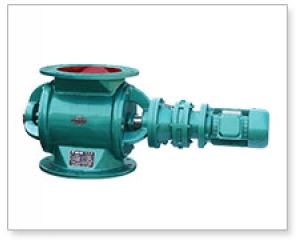

GLJW-4型卸料器
作者 Admin
浏览
发布时间 11/10/22
| ||||||||||||||
| 技术参数： | ||||||||||||||
| 规格 (φXH) mm |
每转体积 Volume/ Rotation |
减速电机型号 (Speed-down motor model) |
转速 (Rew) |
工作温度 (Work temperature) |

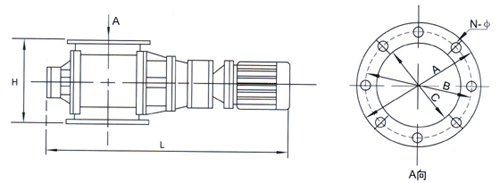

安装联接尺寸 Installation Dimension | |||||||||
| KW | r/min | ℃ | A | B | C | H | L | N-φ | ||||||
| φ150×250 | 2立升/转 | XLD2-59-0.55 | 24 | ≤280 | φ260 | φ225 | φ150 | 250 | 870 | 8-φ18 | ||||
| φ200×300 | 6立升/转 | XLD2-59-0.55 | 24 | ≤280 | φ320 | φ280 | φ200 | 300 | 930 | 8-φ18 | ||||
| φ250×400 | 12立升/转 | XLD3-59-0.75 | 24 | ≤280 | φ375 | φ335 | φ250 | 400 | 1060 | 12-φ18 | ||||
| φ300×450 | 16立升/转 | XLD3-59-1.5 | 24 | ≤280 | φ440 | φ395 | φ300 | 450 | 1090 | 12-φ22 | ||||
| φ350×500 | 20立升/转 | XLD3-59-1.5 | 24 | ≤280 | φ490 | φ445 | φ350 | 500 | 1170 | 12-φ22 | ||||
| φ400×600 | 32立升/转 | XLD4-59-2.2 | 24 | ≤280 | φ540 | φ495 | φ400 | 600 | 1260 | 16-φ22 | ||||
| φ450×650 | 45立升/转 | XLD4-59-2.2 | 24 | ≤280 | φ595 | φ550 | φ450 | 650 | 1350 | 16-φ22 | ||||
| φ500×680 | 60立升/转 | XLD5-59-3 | 24 | ≤280 | φ645 | φ600 | φ500 | 380 | 1500 | 20-φ22 | ||||
注：本阀可按用户要求设计制造。
This valve can be designed and fabricated according to the user's requirements.
This valve can be designed and fabricated according to the user's requirements.
